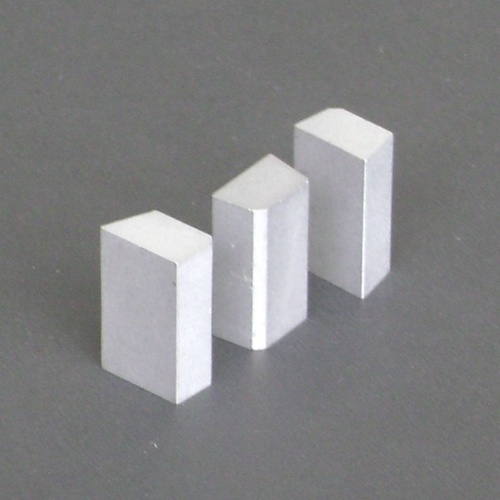

Widia Carbide Inserts

Widia Carbide Inserts
Widia Carbide Inserts
Send Inquiry
Product Code : WI 17
Brand Name : Widia
Price And Quantity
  • Minimum Order Quantity
  • 10 Piece
  • Price
  • 1 USD ($)/Piece
Product Description

The Widia Inserts for carbide brazed tips are suitable for cutting metal, stone and other material. When using the tungsten carbide brazed tips, choosing suitable material grade of inserts is very important, it is directly regarding to the machining cost and efficiency; machining difference material should choose difference grade of inserts, for example, they are difference grade machining carbon steel and alloy steel, cast iron and steel. You should understand the physical property and the rang of application for each grade, and then choosing a suitable grade for you.

Benefits of utilization

Widia Carbide Inserts are the replaceable and usually index-able bits of cemented carbide utilized in machining cast iron, steels, nonferrous materials and high temperature alloys. The inserts enable quicker machining and leave finer finishes on all metal parts. Irrespective of the component size, design or material, these insure the flawless manufacturing productivity. Capable to suit all specific machining procedures, these assist you to stay in the lead of the competition. Increasing your productivity, these Widia Carbide Inserts help the users in saving money and provide the reliability as well as greatest versatility in their working procedures.

Products specification:

  • Manufacturer: Better Carbide Co., Limited.
  • Place of Origin: Made in China.
  • Package: Neutral packing
  • Delivery time: 20 to 30 days.
  • Material: Tungsten carbide
  • Samples available

Tungsten Carbide Material Grade

ISO Code Grade Density (g/cm3) Hardness (HRA) TRS Mpa
K05 YG6X 14.8-14.9 91-92 2080
K10 YG6A 14.8-14.9 91.5-92.5 2180
K20 YG6 14.8-14.9 90.5-91.5 2280
K30 YG8 14.75-14.85 89.5-90.5 2380
K35 YG10 14.6-14.75 88.5-89.5 2580
K40 YG15 14.0-14.2 86-87 2780
M10 YW3 12.75-12.95 91.5-92.5 1800
M20 YW2 12.95-13.15 90.5-91.5 2000
P20 YT14 11.4-11.5 91-92 1600
P30 YT5 12.85-13.05 90-91 1800
Trade Information
  • Supply Ability
  • 200 Piece Per Day
  • Delivery Time
  • 15-30 Days
